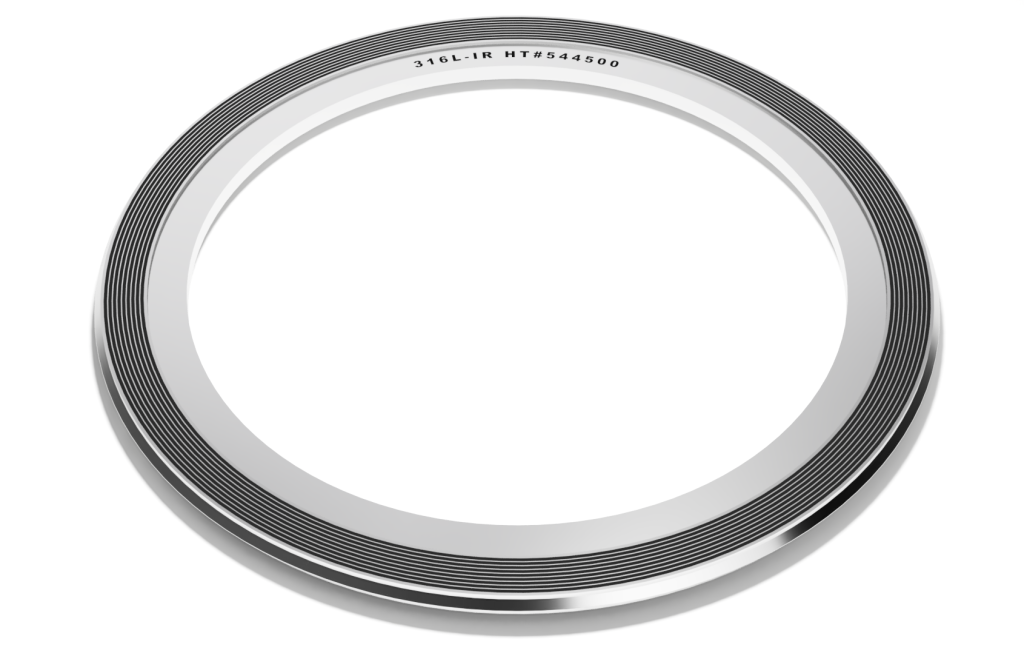

Leader Spiral Wound Gasket Type SI

CONTACT

Ask Leader Gasket

Do you have a question? Feel free to contact us!

info@leadergt.com

DESCRIPTION

Designed more than 100 years ago, Spiral Wound Gaskets (SWG’s) are widely used as high integrity and sustainable gaskets. The sealing element is manufactured from preformed, v-shaped metallic windings with intermediate soft sealing fillers. As standard metallic material for winding and inner ring SS316L is used and for the soft fillers, graphite, PTFE or LeaderTHERM NXT 1000 (high temp. modified Phlogopite). Due to the gaskets construction, SWG’s offer high compressibility and recovery. Leader Style SI SWG’s are provided with an inner ring. The SI gaskets are suitable for ASME B16.5 tongue and groove or male / female (Spigot to Recess) flanges up

Available also for Heat Exchanger applications.

Technical Data

Product Data Sheet

APPLICATION

(Petro-) Chemical Industry, Steam, On- and Offshore exploration, pipeline systems, pressure vessels and exchangers.

ADVANTAGES

CHEMICAL COMPATIBILITY

Spiral Wound Gaskets can be used in a wide variety of media, i.e. a pH range varying from 0-14. Application/ compatibility guide is available on request. Temperature from –450 °F up to 850 °F (steam up to 1200 °F)

DELIVERY OPTIONS

Standard style S gaskets are normally manufactured according to particular customer drawings, or by given sizes. Gaskets can be manufactured in a thickness of .125″ / .175″ / .250″ / 285″. Different materials are available.

TEMPERATURE

Spiral Wound Gaskets can be used in a wide variety of media, i.e. a pH range varying from 0-14. Application/ compatibility guide is available on request. Temperature from –450 °F up to 850 °F (steam up to 1200 °F).

APPROVALS & CERTIFICATES

  • EN10.204 3.1

SEALING CHARACTERISTICS

  • low leak rate
  • non-sticking to the flanges
  • Firesafe
  • Design suitable for fluctuating temperatures and pressures
  • broad chemical resistance (pending on the metallic materials and filler)
  • wide seating stress range
  • blow out safe

Related Products

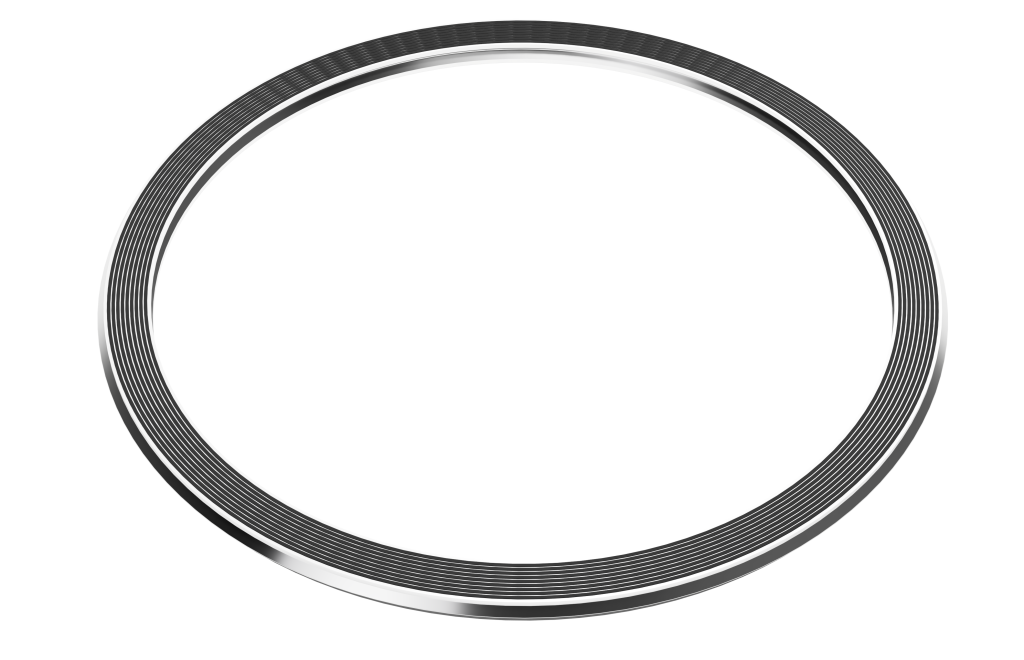

The sealing element - no inner- and outer guide ring. The “S” SWG´s are manufactured in sealing element - winding material (SS316L, SS321…) and the soft fillers - graphite, PTFE, LeaderTHERM NXT 1000 (high temp. modified Phlogopi...
The sealing element with inner ring. The “SI” SWG’s are manufactured with an inner ring, sealing element – winding material(SS316L, SS321…) and the soft fillers - graphite, PTFE, LeaderTHERM NXT 1000 (high temp. modified Phlogopi...

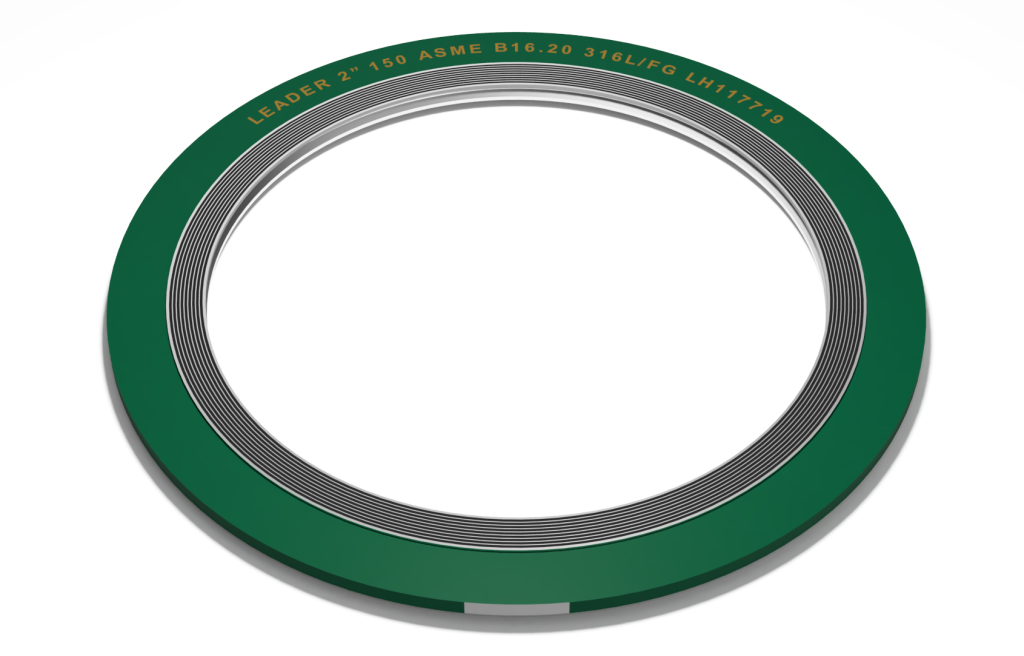

The sealing element with outer guide ring. The “SR” SWG’s are manufactured with an outer guide ring, sealing element – winding material(SS316L, SS321…) and the soft fillers - graphite, PTFE, LeaderTHERM NXT 1000 (high temp. modif...

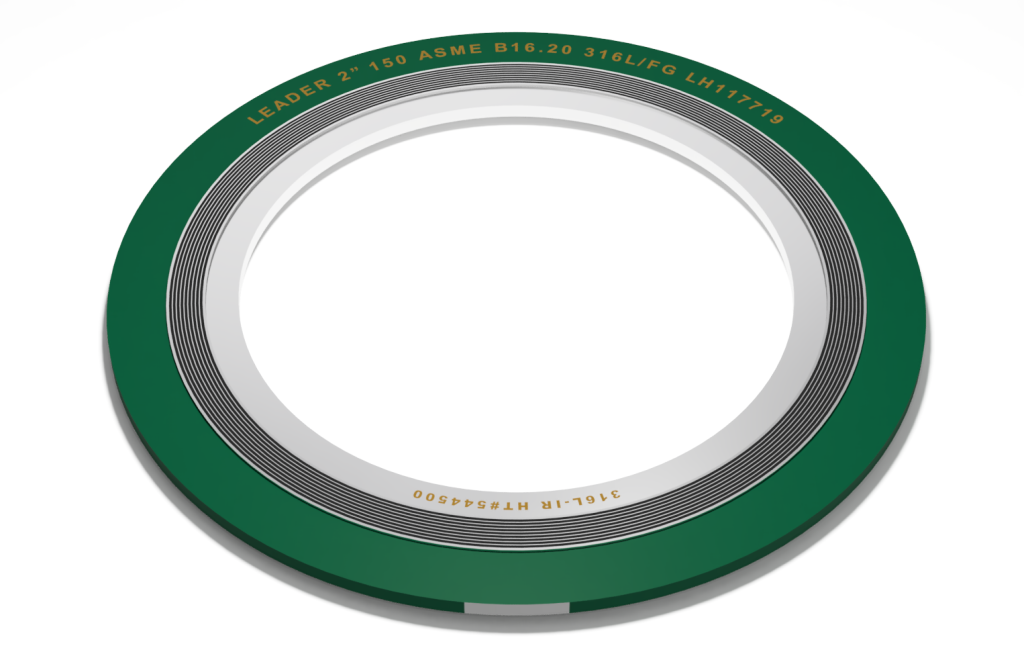

The sealing element with inner- and outer guide ring. The “SRI” SWG’s are manufactured with an inner, outer guide ring, sealing element – winding material(SS316L, SS321…) and the soft fillers - graphite, PTFE, LeaderTHERM NXT 100...
